12G-SDI Fiber Extender with Loop out

3G-SDI,6G-SDI,12G-SDI fiber extender, 1-64 channels CWDM uncompressed SDI fiber optic extender,we welcome any AV transmission OEM device

12G-SDI fiber optic transmitter and receiver, 3G-SDI fiber converter, 1-64 channels CWDM uncompressed SDI fiber optic extender, HD-SDI to fiber extender, SDI optical transceiver. SDI extender over fiber . we welcome any AV transmission OEM device

Product Introduction

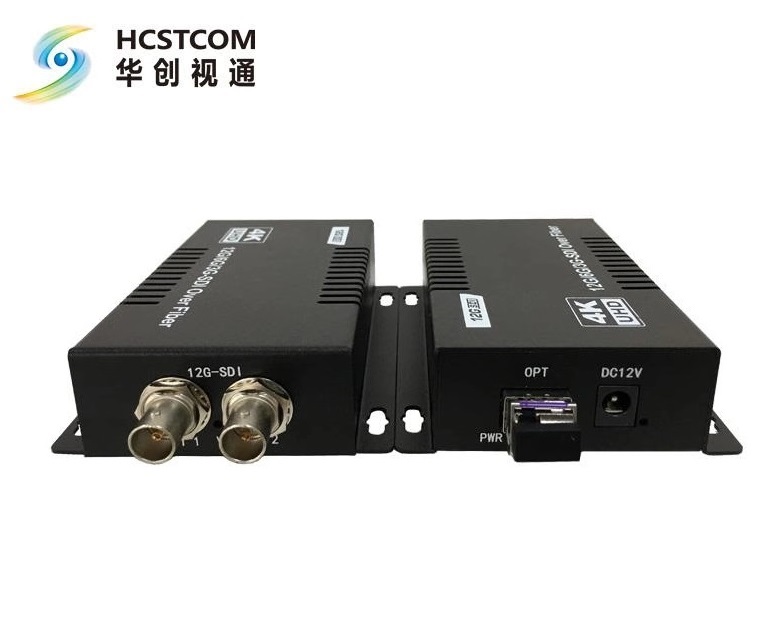

Name ： 12G-SDI fiber optic transmitter and receiver,12G-SDI Fiber Extender with Loop out

1、Overview
12G-SDI fiber optic extender could transmit3840*2160 60Hz resolution of 12G-SDI signal with 11.88Gb bandwidth over single core fiber cable.it is compatible with 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS stream(auto switching) and SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082

2、Features
* 1-ch 12G-SDI over single core fiber cable. Save fiber cable sources.
* Has 2 SFP port, could have one fiber cable as back up.
* Support 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS stream(auto switching)
* SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082
* Could support rack mount

3、Application
Remote OB Van/Truck Video Feeds
Broadcast Studio Camera Feeds
Long-haul Signal Transport
TV station/video conference
Lecture Hall Projector Connectivity
Medical/Surgical Room Broadcast
Building to Building video conference calling
Small corporate campus video links

4、Specification
12G-SDI/ASI In/ Out：1 channel with loop optional
Signal standard: SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S, 2081,2082,
DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -11.88Gb/s)
Signal level: 800mV nominal
Reflection loss: >15DB
Rise/drop time: 200ps nominal
Reflection loss： > 15dB
connector： 75Ω BNC
Overshoot： 10% amplitude
Jitter: < 0.3UI
Optic：Others
Transmission distance：10KM
Fiber Type： single mode (multimode optional)
Operating temperature： -45°C~+50°C
Wavelength： 1310nm，1550nm
Power: 10W
Reflection loss > 15dB
Average time trouble-free: >100000 hours
Connector: LC/PC
Case: Stand alone(1U rack mount optional)
