location：Homepage / AV Product
AV Product

16CH ASI with audio & data over Fiber

ASI fiber optic transmitter and receiver,ASI fiber converter,1-64 channels CWDM uncompressed ASI fiber optic extender,ASI to fiber extender,ASI optical transceiver,ASI extender over fiber,we welcome any AV transmission OEM device
  • Product Introduction

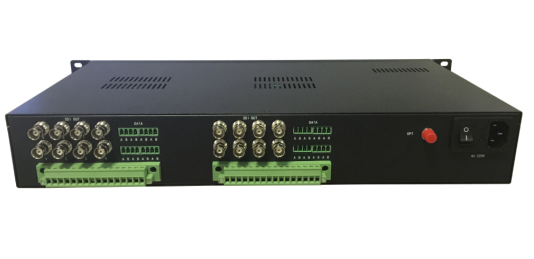

  • Name：16-CH ASI fiber optic transmitter and receiver with Ethernet

    1.  Overview

    Our  16-channel ASI fiber optic transmitter and receiver extends 16 channels ASI signals over single core fiber optic cable.
    Our multiple ASI extender over fiber optic cable is all produced by TDM, DWDM, CWDM uncomressed solution so that we could do multiple ASI signal with
    data, external audio, Ethernet and other functions over single core fiber cable.Our ASI extenders could meet all broadcast TV transmission quality level. We welcome any OEM service.


    2.  Features

    16-channel unidirectional  ASI over single core fiber
    Compliant with the standard of DVB-ASI(EN50083-9)
    Range from 19.4Mb/s to 270Mb/s
    Auto adaption to the speed of SDI 143M,177M,270M,360M,540Mbps, or DVB-ASI
    Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
    100m automatic cable equalization, all the 2.97Gb / s rate below(Belden 1694A)
    Optional network management system
    LED status indicators monitor the critical parameters
    Support hot swap
    Stand-alone, 1U rack mount

    3.  Specifications

    a)  Serial TV, BNC input

    Signal standard: SMPTE259M,SMPTE297M,SMPTE310, SMPTE305(SDTI), DVB-ASI(EN50083-9)
    Input number:16
    Reflection loss: >15DB
    Equilibrium: 0-200m @270Mb/s
    Connector: 75Ω BNC
    b)  Optics

    Channel: 1
    Type: single-mode (multimode optional)
    Wavelength: CWDM
    Reflection loss: > 15dB
    Dithering: < 0.1UI
    Connector: FC/PC ,ST/PC

    c)  Serial TV, BNC output (EO/OE)

    Channel: 16
    Signal level: 800mV nominal
    Rise/fall time: 200ps indication
    Overshoot: < 10% amplitude
    Reflection loss: >15dB
    Dithering: < 0.1UI
    Connector: 75Ω BNC

    d) Data Optional

    Channel: 1-8
    Data format: RS-485/RS232/RS422 (full/half duplex) and support NRZ, RZI and Manchester
    Data rate: DC to 100 Kb/s
    Mode: Full/half duplex
    Connector: wire connecting terminal

    e)  Power and environmental indication

    Operating temperature: 0°C~+50°C
    Pressure: 90VAC to 245VAC
    Power: 12 W
    EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
    Average time trouble-free: >100000 hours

    f)  Other
    Dimension: 1U standard rack
    Weight: 2Kg

    4.  Applications
    Remote OB Van/Truck Video Feeds;
    Broadcast Studio Camera Feeds;
    Long-haul Signal Transport;
    TV station/video conference;
    Lecture Hall Projector Connectivity;
    Medical/Surgical Room Broadcast;
    Small corporate campus video links


    5.   Ordering information

    ASI Fiber Optic Transmitter/Receiver
    HC2016P-T
    16-ch ASI input, 1-ch 1000M Ethernet, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km, 1U rack mount
    HC42016P-R

    16-ch ASI output,1-ch 1000M Ethernet, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km,1U rack mount
